Introduction:
The IUCAA Science Day presentation on antennas and their significance in radio astronomy provided valuable insights into the fundamental principles underlying the detection and manipulation of electromagnetic waves. This report aims to encapsulate the key points covered during the presentation, emphasizing antenna basics and the demonstration of an experimental setup showcasing antenna transmission and reception principles.
Understanding
Electromagnetic Spectrum:
The presentation commenced with an overview of the electromagnetic spectrum, highlighting the oscillating magnetic and electric fields characteristic of electromagnetic waves. Waves are characterized by their wavelength (λ) and frequency (𝜈 or f), with optical wavelengths passing through the Earth's atmosphere, alongside radio waves with larger wavelengths. This property enables the detection of radio waves from Earth, making telescopes on Earth ideal for detecting optical or radio wavelengths.

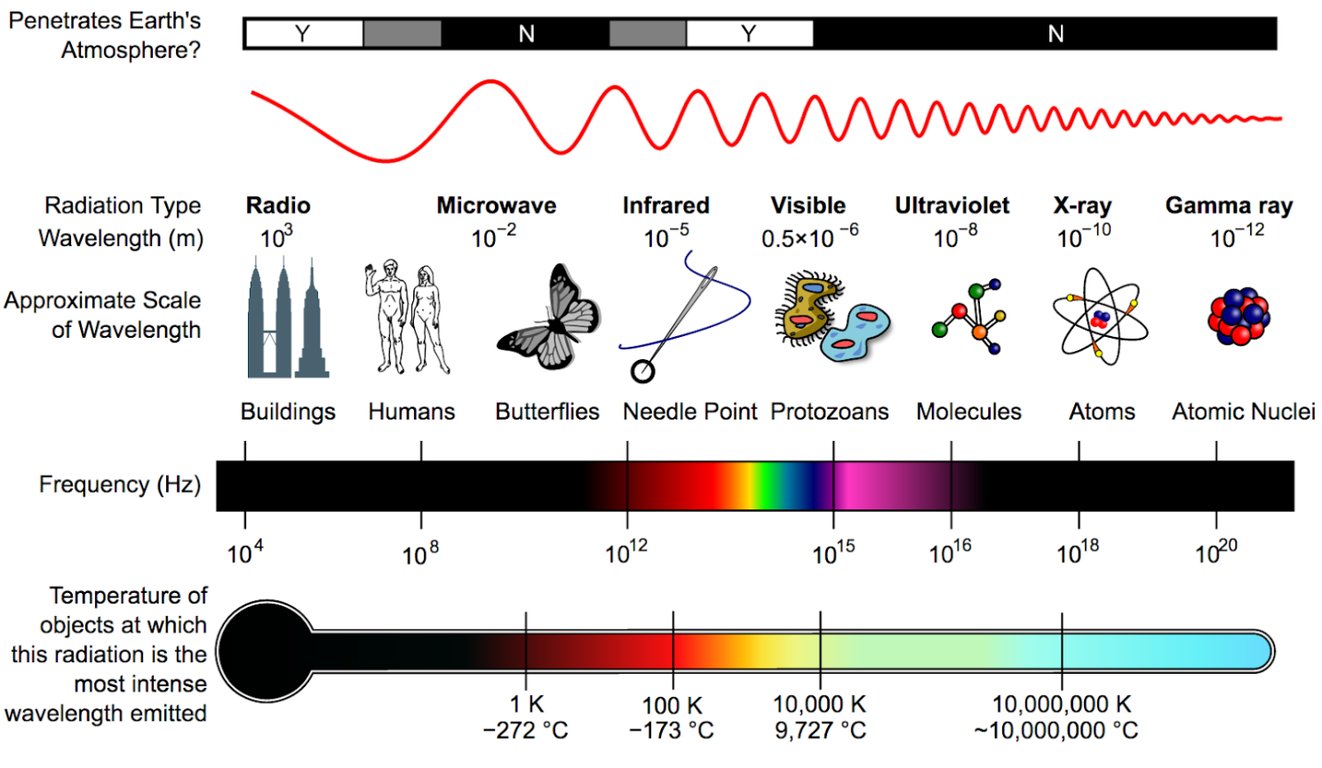

Electromagnetic Spectrum
Antenna Basics:
A significant portion of the presentation was dedicated to elucidating antenna basics. Antennas were defined as devices capable of converting electric signals into electromagnetic waves or vice versa. The process of transmission involves the oscillation of charges due to an electric current, producing electromagnetic waves of a specific wavelength. Conversely, during reception, free charges in the conductor oscillate due to an incoming electromagnetic wave, generating a current. Various types of antennas were explored.
Monopole Antenna:
A monopole antenna is a basic antenna design featuring a single conductive element usually placed above a ground plane. It is often used in applications where space is limited, such as mobile phones, car antennas, and small wireless devices.
Functioning: The monopole antenna operates by using the ground plane (earth or a metal surface) as the other half of the antenna. When an RF signal is applied to the monopole, it radiates electromagnetic waves into space.
Cases: Monopole antennas are widely used in various applications due to their simplicity and effectiveness in compact designs. They are commonly seen as whip antennas on portable radios, antennas in mobile phones, and as part of RFID (Radio Frequency Identification) systems.
Dipole Antenna:
A dipole antenna consists of two conductive elements of equal length, oriented parallel to each other and typically separated by a gap. It is one of the most common types of antennas and serves as a fundamental reference for many other antenna designs.
Functioning: When an alternating current (AC) is applied to the dipole antenna, it generates an oscillating electric field between the two elements. This oscillating electric field then radiates electromagnetic waves into space.
Cases: Dipole antennas are used in a wide range of applications, including radio and television broadcasting, WiFi routers, and amateur radio. They are versatile and can be designed for specific frequencies by adjusting the length of the elements.
Dipole Antenna
Folded Dipole Antenna:
A folded dipole antenna is a variation of the dipole antenna, where the straight elements of the dipole are folded back on themselves. This design enhances the antenna's impedance characteristics and bandwidth.
Functioning: Similar to a dipole antenna, a folded dipole antenna operates by generating an oscillating electric field between its elements when an AC current is applied. However, the folding of the elements alters the electrical characteristics, improving impedance matching and increasing bandwidth.
Cases: Folded dipole antennas are commonly used in television antennas, where a wide bandwidth is required to receive multiple channels. They are also used in RF communication systems and antennas for military applications due to their broadband performance and robustness.
Yagi Uda Antenna with 5 Elements:
This configuration is referred to as a Yagi-Uda antenna, a type of directional antenna widely used in communication and broadcasting.
Functioning: The Yagi-Uda antenna comprises a driven element (the dipole), one or more directors (shorter elements placed in front of the driven element), and a reflector (a longer element positioned behind the driven element). The directors focus the antenna's radiation pattern in a specific direction, while the reflector helps increase the antenna's gain by reflecting energy back towards the driven element.
Cases: Yagi-Uda antennas are widely used in television reception, amateur radio, and point-to-point communication systems. They offer high gain and directivity, making them ideal for long-range communication.

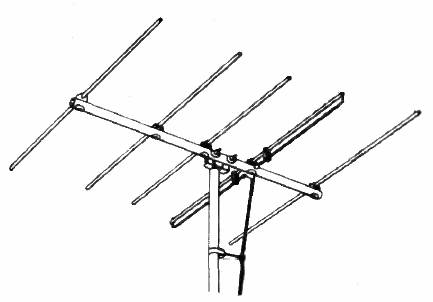

Yagi Uda Antenna with folded Dipole
Yagi Uda Antenna with 7 Elements:
This is a similar configuration to the previous one, but with additional directors for increased directivity and gain.
Functioning: The functioning of this antenna is essentially the same as the Yagi-Uda antenna with 3 directors and 1 reflector. The additional directors further enhance the antenna's directivity and gain, allowing for longer communication distances.
Cases: This type of Yagi-Uda antenna with more directors is used in situations where higher gain and narrower beamwidth are required, such as long-distance point-to-point communication links and satellite communication.
Log Periodic Antenna:
A log periodic antenna is a type of directional antenna that exhibits wide bandwidth and moderate gain. It comprises a series of dipole elements organized in a geometric configuration.
Functioning: The log periodic antenna operates on the principle of periodicity, where the spacing and length of the dipole elements vary logarithmically along the length of the antenna. This design allows the antenna to maintain consistent performance across a wide range of frequencies.
Cases: Log periodic antennas are commonly used in applications requiring broadband coverage, such as television antennas for receiving multiple channels, EMC (electromagnetic compatibility) testing, and spectrum monitoring. They offer a compromise between bandwidth, gain, and directivity, making them suitable for various communication and measurement tasks.
Patch Antennas:
Patch antennas are a type of microstrip antenna, characterized by a low-profile design with a metallic patch or patches printed or etched on a dielectric substrate.
Functioning: Patch antennas operate by exciting electromagnetic waves on the metallic patch, which then radiate into space. They are known for their simplicity, compact size, and ease of integration into electronic devices and systems.
Cases: Patch antennas find applications in wireless communication systems, such as WiFi routers, RFID tags, mobile phones, and satellite communication systems. Due to their small size and ease of fabrication, they are particularly suitable for applications with limited space constraints.
Patch Antennas
Parabolic Antennas:
Parabolic antennas, commonly known as dish antennas, use a parabolic reflector to concentrate incoming or outgoing electromagnetic waves onto a single point called the focal point.
Functioning: The parabolic shape of the reflector causes incoming parallel rays to converge at the focal point, resulting in high gain and narrow beamwidth. This design is particularly effective for long-range communication and satellite reception.
Cases: Dish antennas are commonly used for satellite communication, radio astronomy, long-distance point-to-point communication links, and satellite television reception. Their high gain and directional properties make them ideal for scenarios where long-distance communication is required.
Radio Telescopes:
The analogy drawn between telescopes and antennas highlights the similarities in their functionality as devices that collect electromagnetic radiation.
Functioning: Telescopes collect visible light or other electromagnetic radiation and focus it onto a detector (e.g., a camera or a sensor). Similarly, antennas collect radio frequency (RF) signals or other electromagnetic waves and convert them into electrical signals that can be processed by electronic devices.
Cases: This analogy underscores the concept that both telescopes and antennas rely on principles of electromagnetic radiation collection and detection. It emphasizes the importance of factors such as size, shape, and design in maximizing their effectiveness in capturing and processing electromagnetic signals.

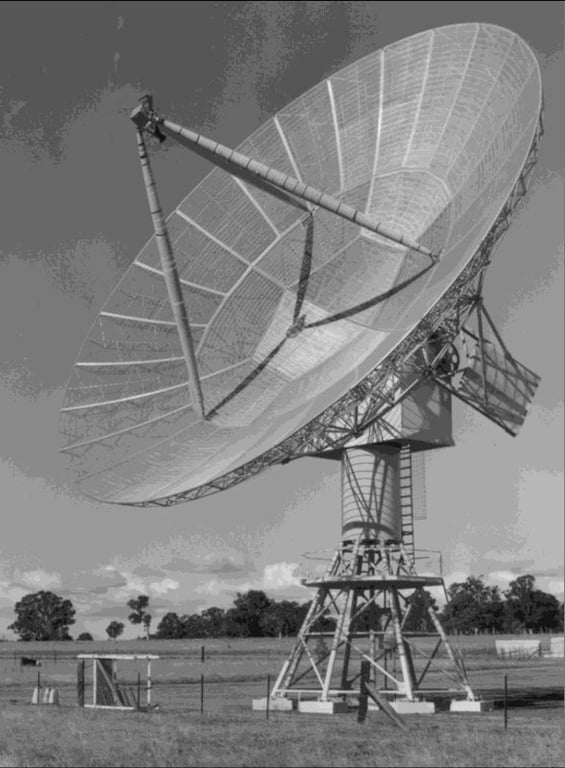

Radio Telescopes
Experiment Demonstration:
The presentation culminated in a demonstration of antenna transmission and reception principles. The experimental setup involved transmitting a signal using various antennas and observing the received changes by rotating the antennas and experimenting with different antenna combinations. Additionally, changing the frequency showcased the optimum reception for different wavelengths, providing practical insights into antenna functionality and optimization.
Setup:
The transmitter generated a continuous wave signal, which was connected to different types of antennas mounted on a rotating platform. A receiver was positioned at a distance to capture the transmitted signal.
Procedure:
The experiment began by transmitting the signal using one type of antenna while observing the reception on the receiver. The process was repeated for each antenna type, adjusting the orientation for optimal reception.
Different antennas exhibited varying reception capabilities, with factors such as design and frequency influencing performance. Changing the frequency demonstrated how antenna performance varied with wavelength.
Observations
Through this experiment, participants gained insights into the fundamental principles of antennas, including transmission, reception, and optimization for different frequencies. The demonstration highlighted the importance of antennas in various applications and provided a practical understanding of their functionality.
The IUCAA Science Day presentation on antennas and their role in radio astronomy provided a comprehensive understanding of antenna basics and their practical applications. The presentation, coupled with the experimental demonstration, offered valuable insights into the transmission and reception of electromagnetic waves, emphasizing the significance of antennas in various technological domains.
Contributions of Indian Institutes in Antenna Research and Development
Raman Research Institute (RRI)
RRI's research includes the development of advanced radio telescopes and antennas for studying cosmic microwave background radiation and other astronomical phenomena. Their efforts are focused on improving our understanding of the early universe and the fundamental processes that shape it.
National Centre for Radio Astrophysics (NCRA)
NCRA conducts extensive research in radio astronomy, including the operation of the Giant Metrewave Radio Telescope (GMRT) and the study of celestial radio sources. Their work is instrumental in exploring the universe and uncovering new astronomical phenomena.
Indian Institute of Astrophysics (IIA), Bangalore
IIA Bangalore engages in extensive research on radio and optical astronomy, including the design and development of advanced antenna systems for astronomical observations. Their work contributes to enhancing the capabilities of telescopes and understanding the universe through the study of electromagnetic radiation.
Tata Institute of Fundamental Research (TIFR), Mumbai
TIFR Mumbai is engaged in advanced research in radio astronomy, including the development and deployment of radio telescopes and antenna arrays. Their work is crucial for expanding our understanding of the universe through the detection and analysis of radio waves from celestial sources.
Indian Institute of Space Science and Technology (IIST), Thiruvananthapuram
IIST Thiruvananthapuram specializes in space-based antenna systems, satellite communication technologies, and radar systems. Their research supports the development of sophisticated antenna systems for space exploration and satellite communications.
Indian Institute of Technology Madras (IIT Madras)
IIT Madras is known for its advanced research in antenna technology, including metamaterial antennas, phased arrays, and applications in defense and space communication. Their research aims to push the boundaries of antenna capabilities for various high-tech applications.
Indian Institute of Science (IISc) Bangalore
IISc Bangalore focuses on innovative antenna research, including smart antennas, MIMO systems, and advancements in electromagnetic theory. Their efforts are directed towards developing next-generation antenna technologies that can adapt to changing environments and requirements.
Indian Institute of Technology Bombay (IIT Bombay)
IIT Bombay conducts cutting-edge research on antenna design, development, and applications, particularly in wireless communication and satellite systems. Their work focuses on creating innovative antenna solutions to enhance the performance and efficiency of communication systems.
Indian Institute of Technology Delhi (IIT Delhi)
IIT Delhi's research encompasses a wide range of antenna technologies, including reconfigurable antennas, wearable antennas, and their applications in IoT and 5G networks. They strive to create versatile and adaptable antenna designs that can meet the demands of modern communication systems.
IUCAA Pune, Inter-University Centre for Astronomy and Astrophysics
IUCAA Pune focuses on radio astronomy and the development of radio telescopes for astronomical observations. Their research contributes to the advancement of our knowledge of the cosmos through the study of radio waves emitted by celestial objects.
These institutes collectively contribute to the advancement of antenna technology and radio astronomy, playing a pivotal role in enhancing communication systems and expanding our understanding of the universe. Their research efforts and innovative developments are crucial for both practical applications and scientific exploration.
